Human ART Equipments

Human ART Equipments IVF Workstation

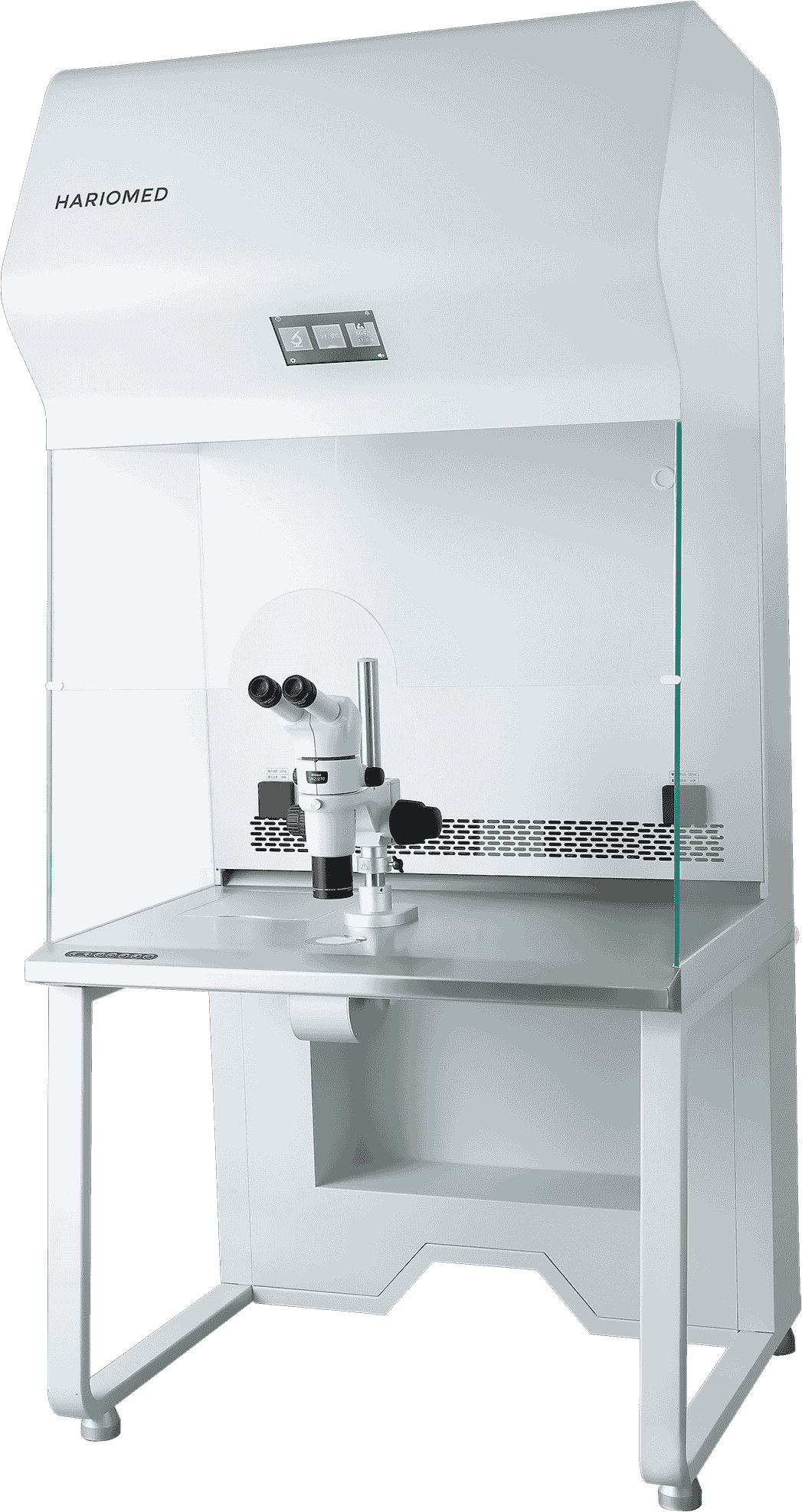

A Series

Human ART Equipments

Vertical laminar flow, a heating system and an anti-vibration table are included to provide a clean, thermostatic, and steady environment for in vitro manipulation of gametes and embryos.

Overview
Specification

FEATURES & BENEFITS:

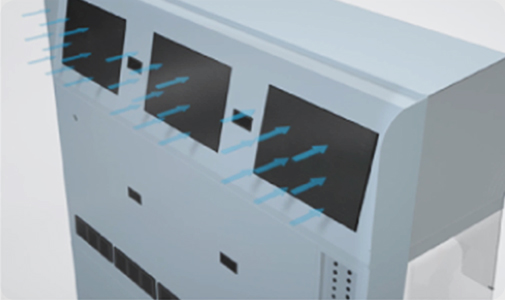

Stable & Uniform VerticalLaminar Flow

Vertical laminar flow & average airflow 0.2~0.5m/s ISO Class 5 clean air achieved through VOC & HEPA filters
Excellent Temperature Control

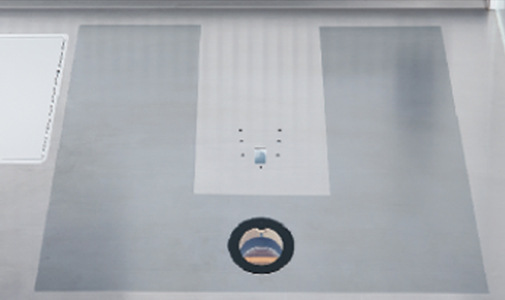

U-shaped heated surface, temperature accuracy ±0.1℃ and uniformity ±0.2℃ φ90mm ITO heated glass provides excellent temp. accuracy and a large transmission illumination area
Anti-vibration Table

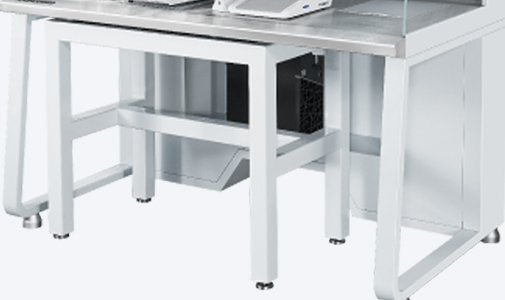

Built-in anti vibration table provides an ideal environment for operating microscopes and micromanipulation system
Improved anti-vibration system (optional) greatly reduces the vibration of buildings, subways, urban railways, etc. to improve unfavorable operating environments
Visualized & Convenient Operation

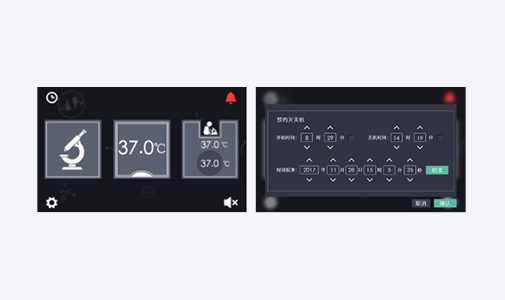

Intuitive multifunctional touch screen provides real-time temperature control, function settings, operation monitoring, appointment on/off, alarm setting, etc.

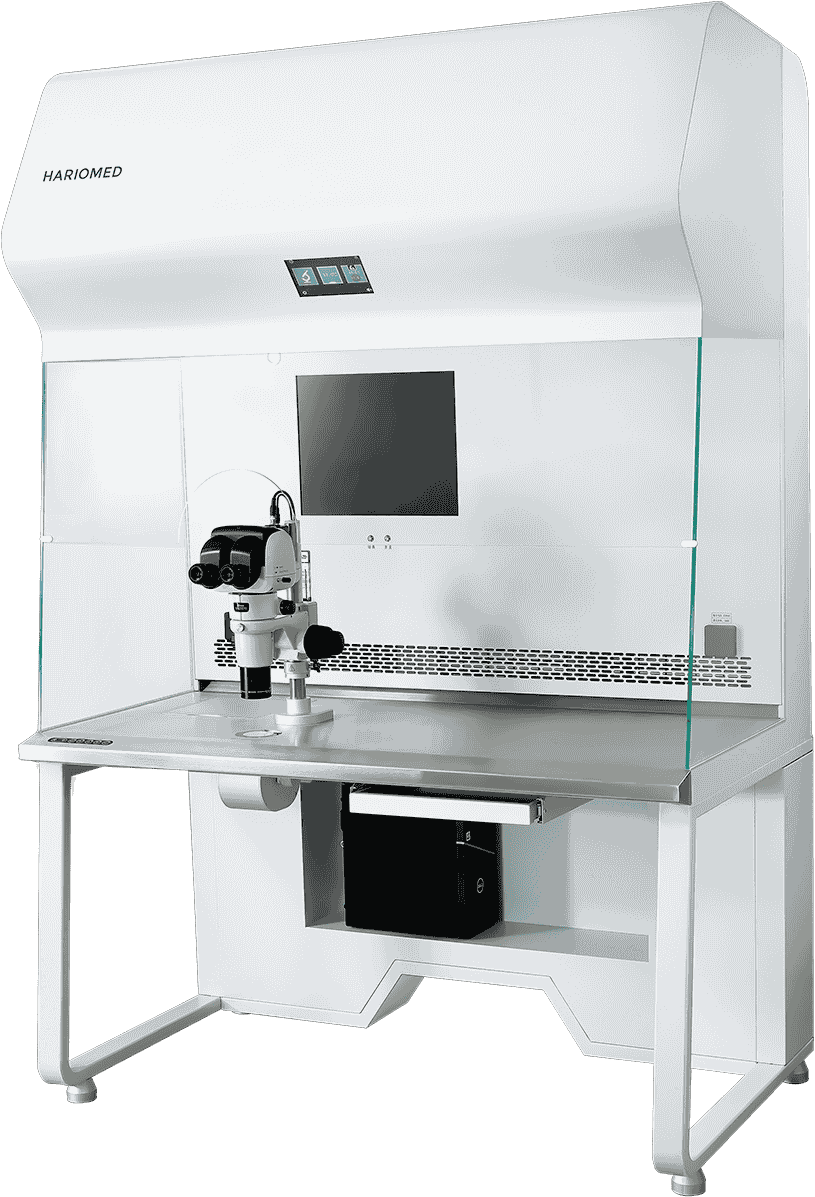

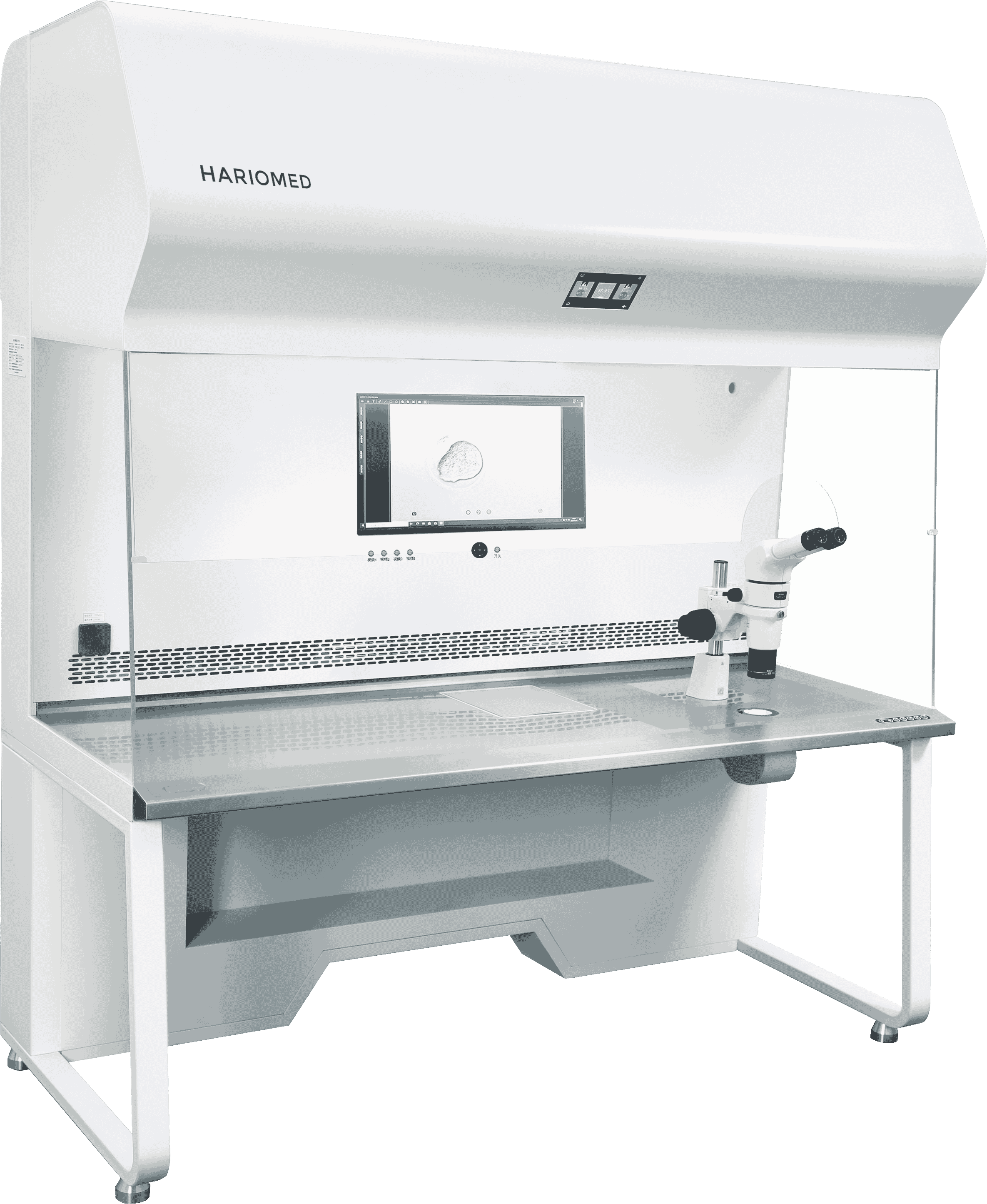

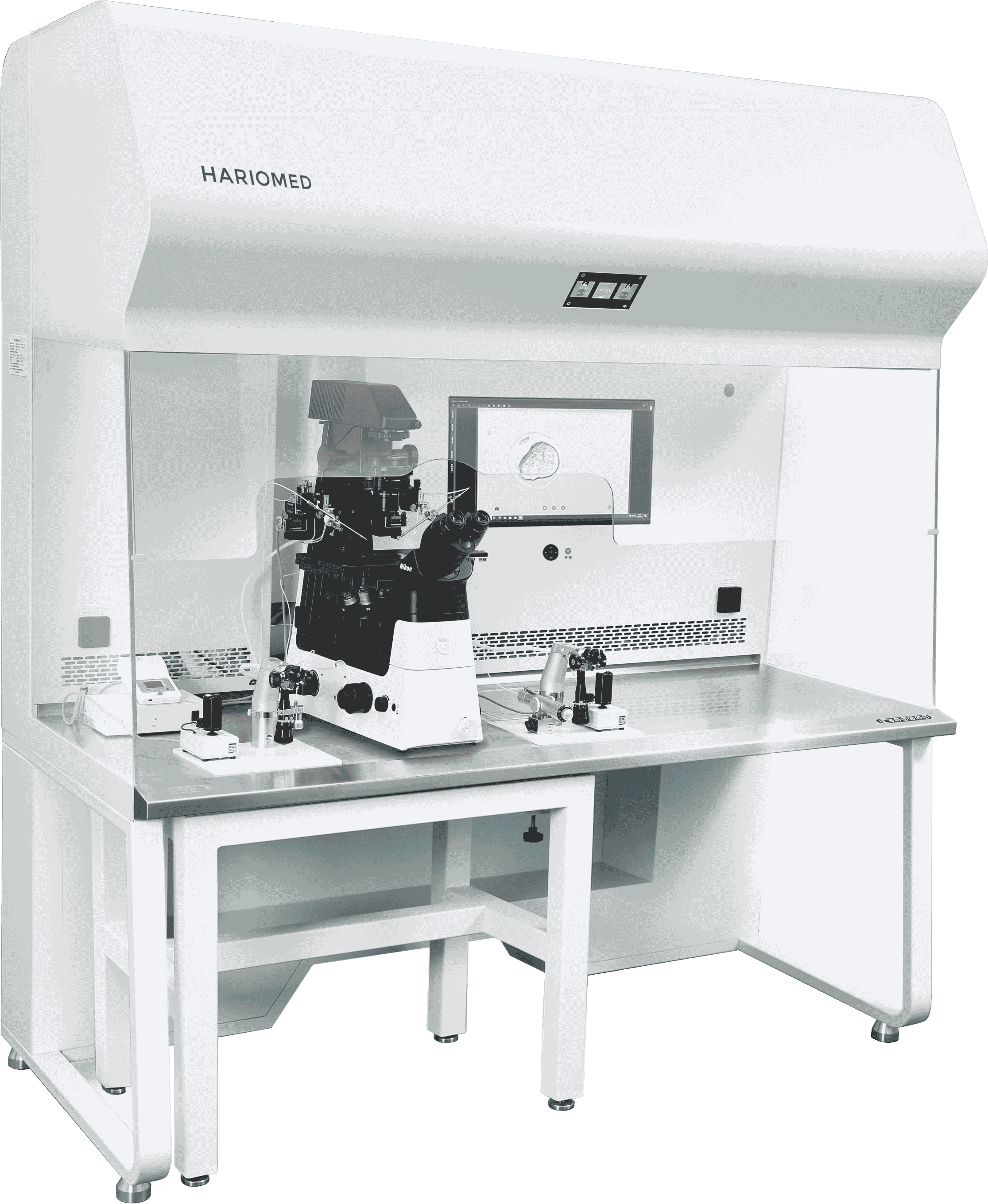

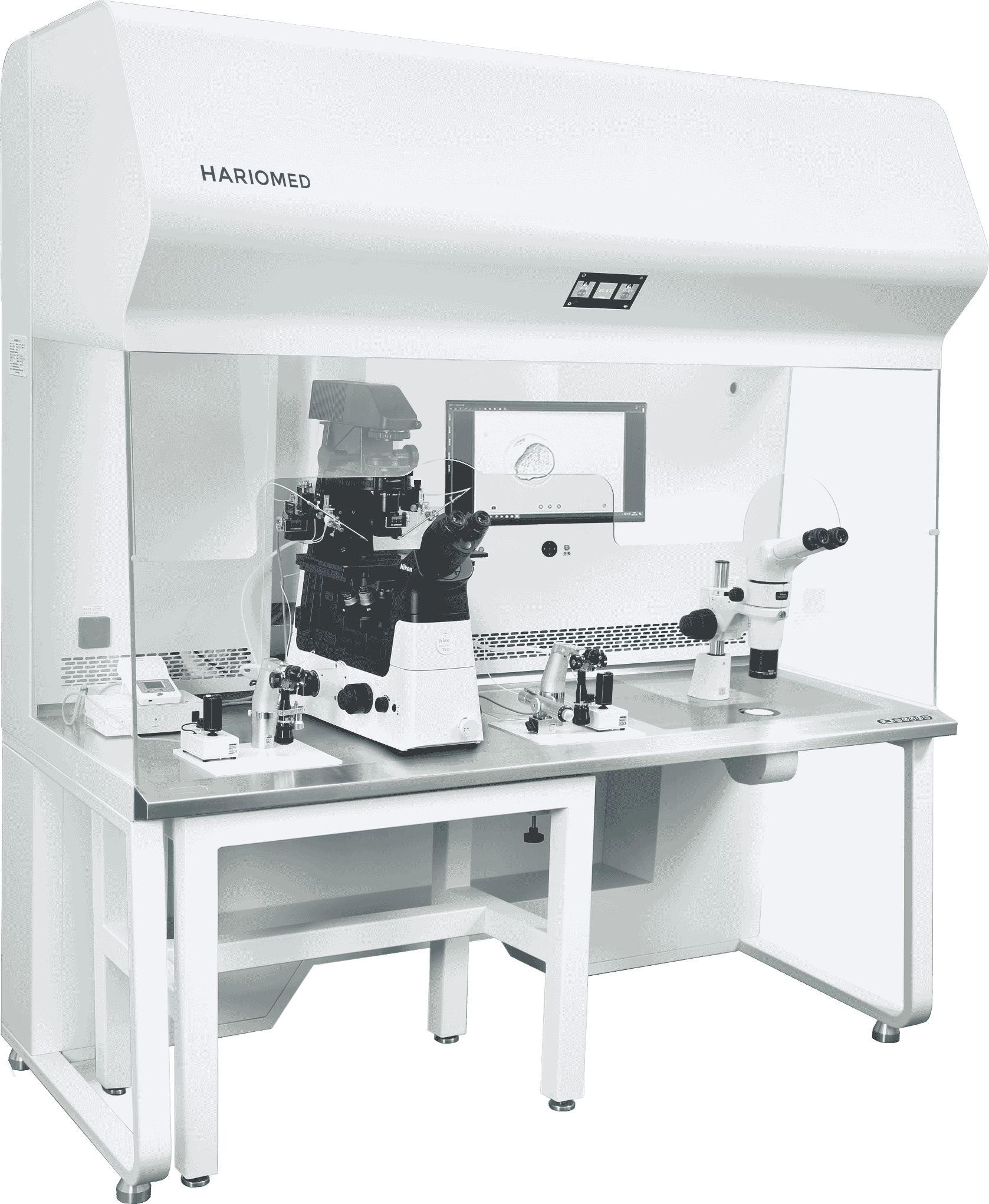

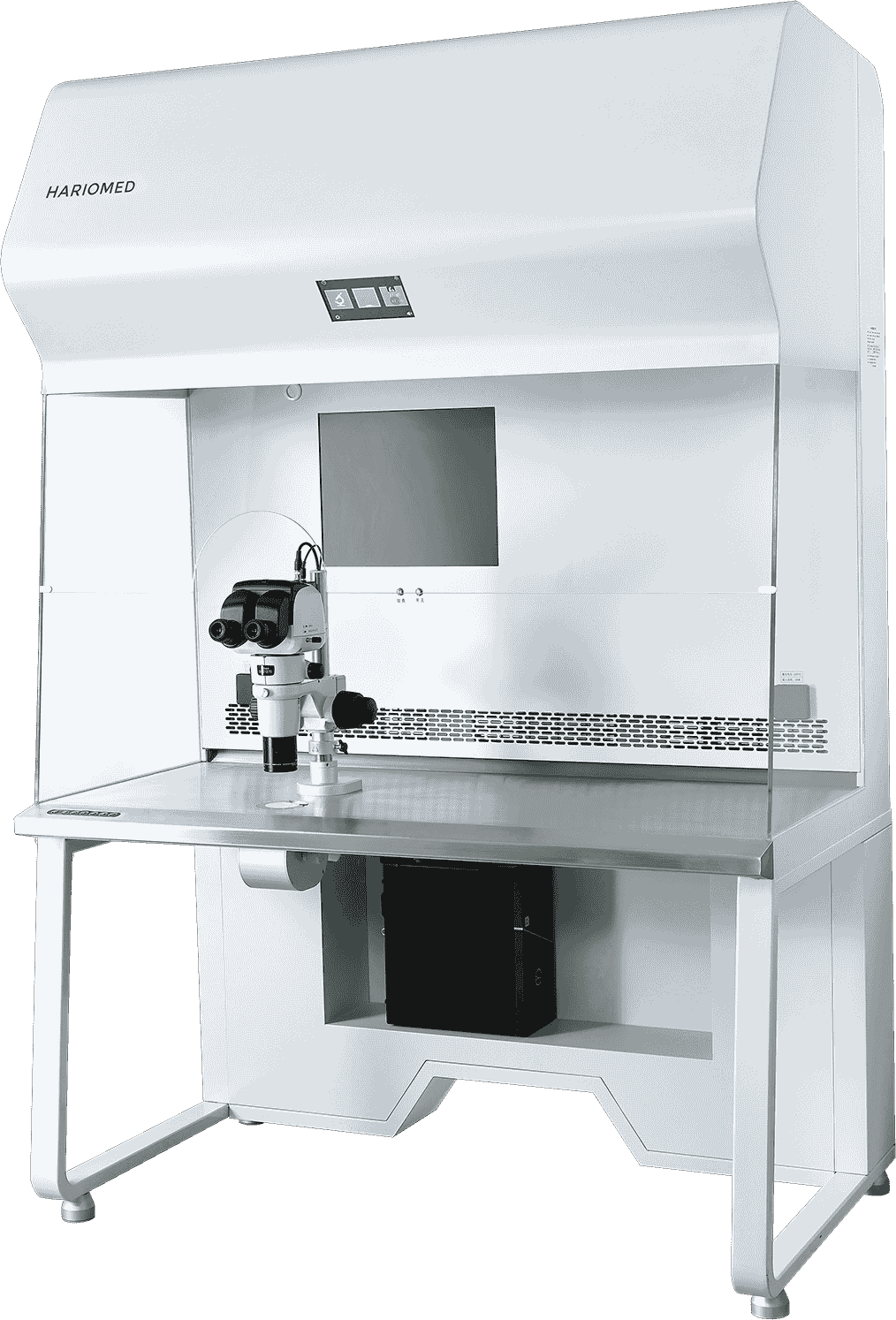

Models and Configurations

Model	IW-A950	IW-A1350A	IW-A1350C	IW-A1350S	IW-A1800	IW-A1800D	IW-A1800S	IW-A1800M

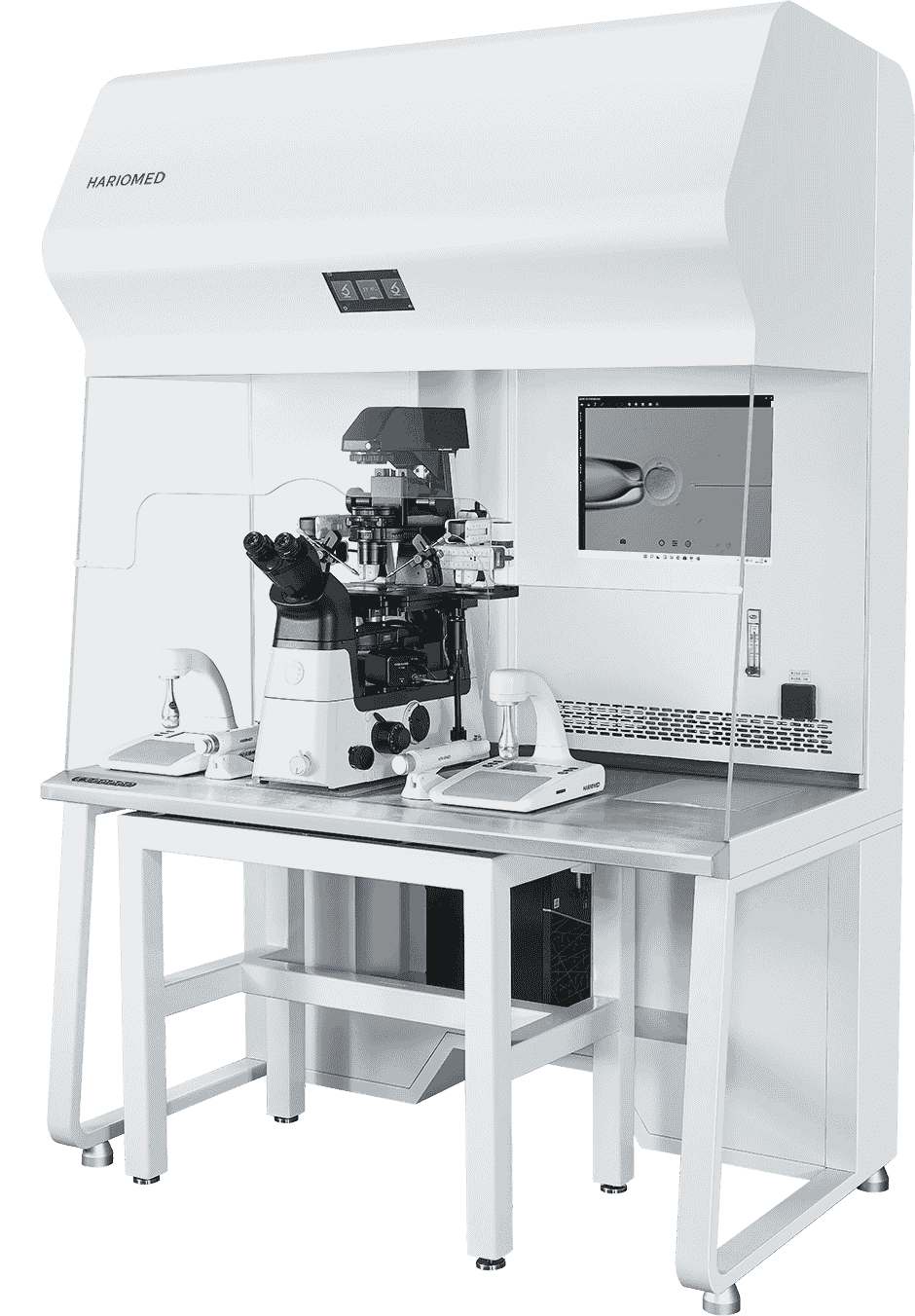

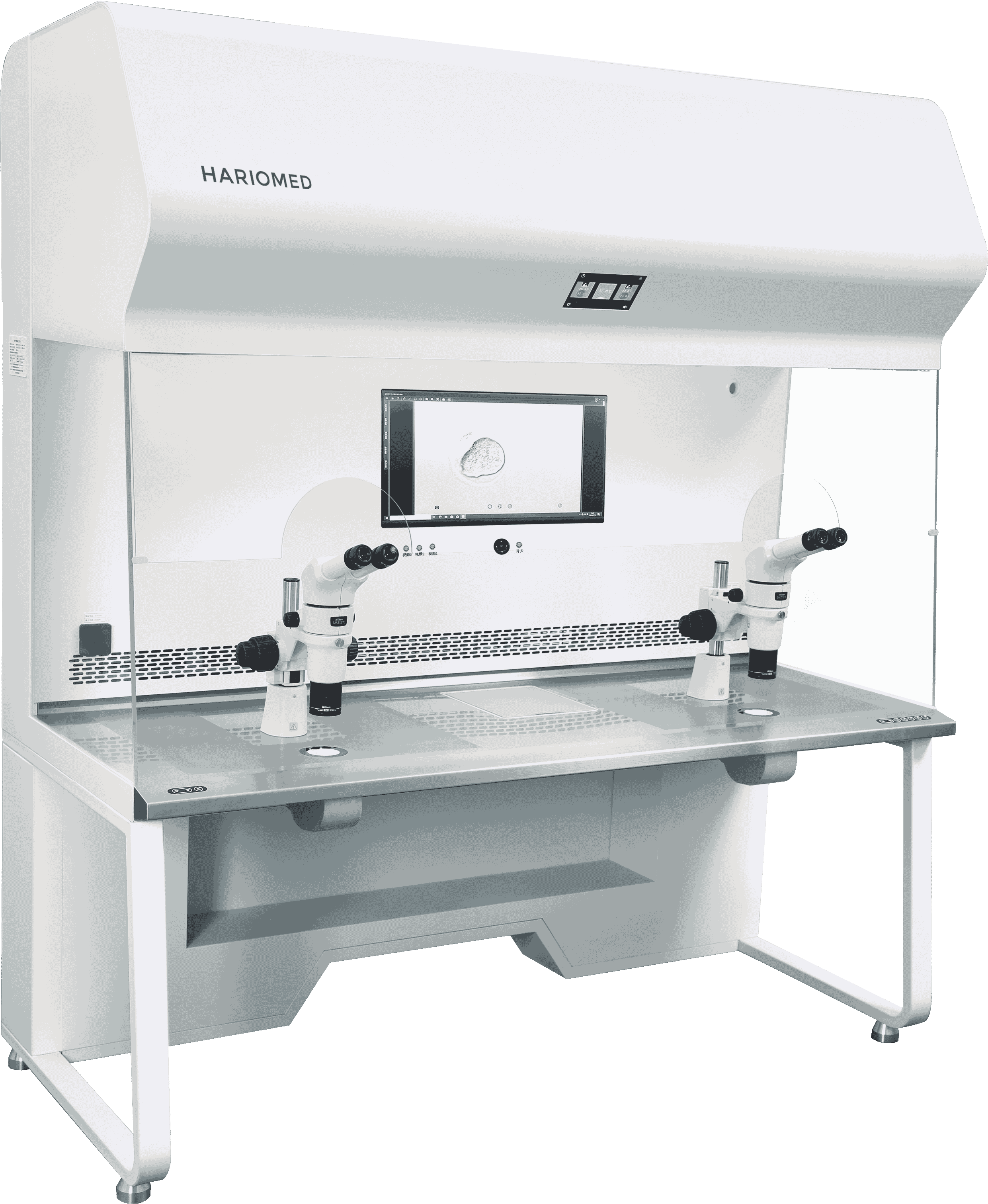

Workplaces for microscope	stereo x1	stereo x1 (L /R)	stereo x1 (L /R)	stereo x1 (L)	stereo x1 (R)	stereo x2	stereo x1 (L)	inverted x1 +stereo x1
Heated table (WxD mm)	800x500			none	600x500	600x500 (x2)	none	600x500
Heated glass plate	x1			none	x1	x2	none	x1
Stereomicroscope light source	x1			none	x1	x2	none	x1
Anti-vibration system	none			x1	none		x1	x1
Integrated CO. incubator	x1	x1	none	x1	x1
19-inch monitor		x1		x1	x1
Multi-function screen	x1
Soft film keypad	x1				x1	x2	x1	x1
Waterproof socket	x2
Computer shelf	x1
Mouse andKeyboard shelf	NA	optional x1		NA	optional x1
