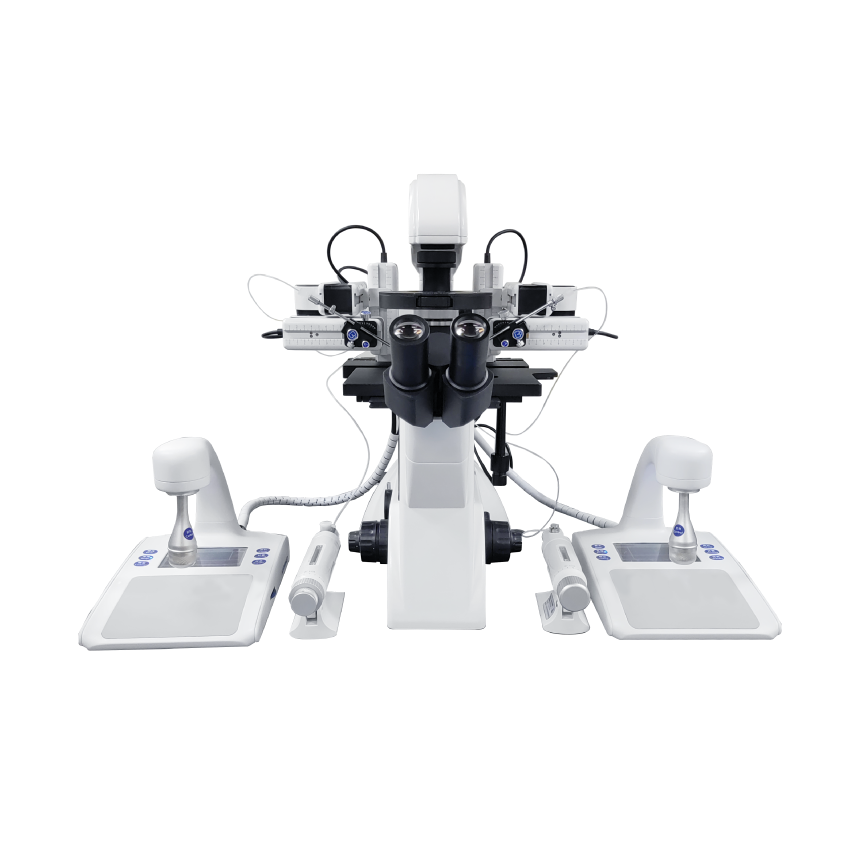

Human ART Equipments Micromanipulator System

Micromanipulator

Human ART Equipments

Electric High-Precision & User-Friendly Micromanipulation widely used inthe field of IVF such as lMSl, ICSl, PGT biopsy, etc.

FEATURES & BENEFITS:

High Precision for Higher Safety

Motor modules are precise, stable control and real-time response in X-Y-Z movement.
Movement precision is less than 1μm and step size (computational resolution) is less than 20nm.

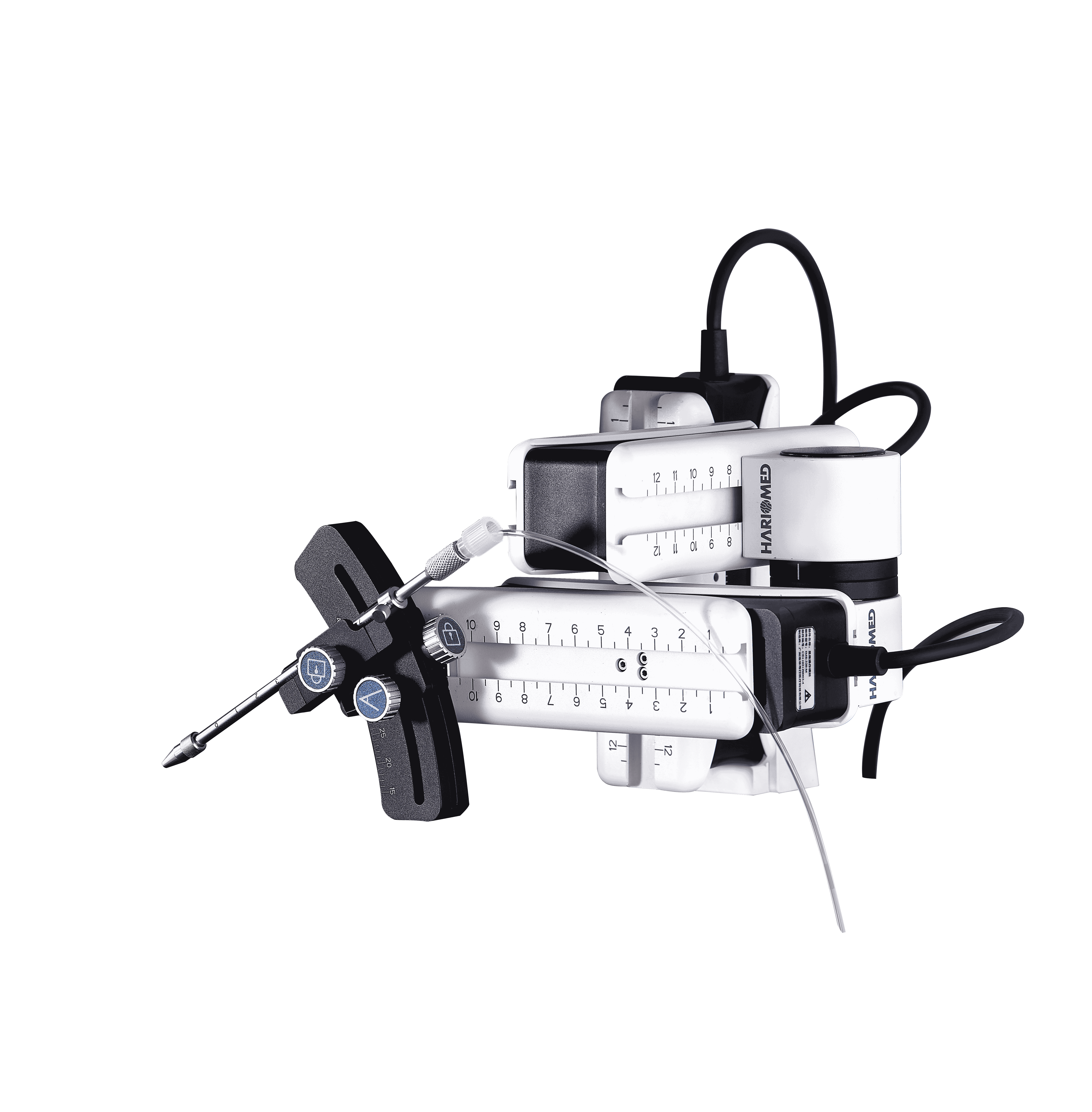

Microinjector holder can swivel inwards or outwards along X axis for needle and dishes changing.
Adjustable angle is between 15° and 45° while angle graduation is 1°.
Design for Safety

Needle tips-fixed holding device: Adjustable angle is between 15°and 45°.
It is no need to re-fine the needle tip in the microscope while adjusting the angles.

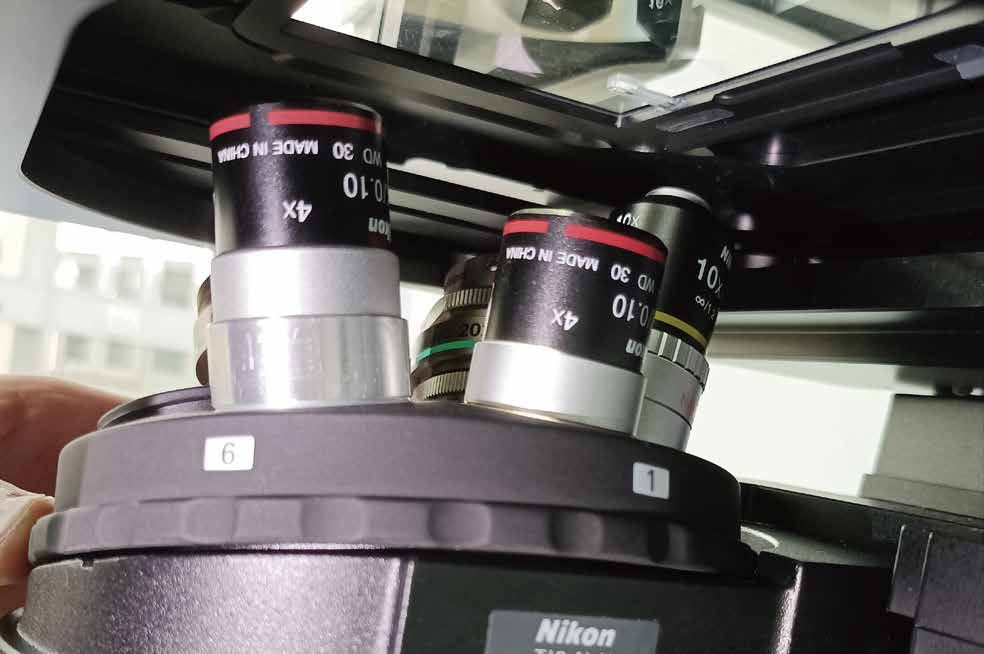

4x customized objective: The focal plane is located above the dish to avoid the needle breaks.

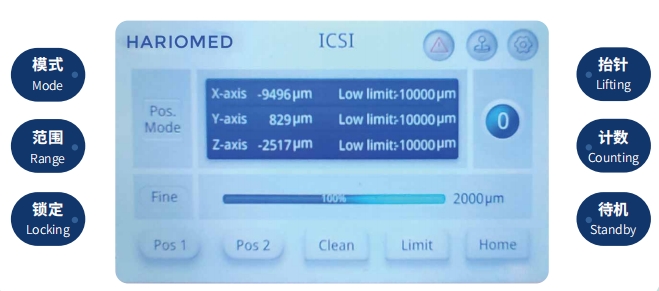

Multi-functional control panel

Key status display: three-axis reference, joystick
status, control mode.
6 shortcut buttons: movement mode, movement range, locking, microinjector lifting, counting and standby.
Position memory: position can be set and saved.
Application memory: up to 5 different applications parameter can be set and saved.

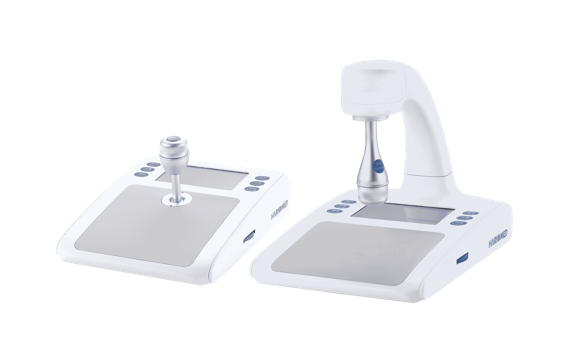

Controller

Inverted controller and upright controller could be chosen according to operator's preference.
One joystick can easily achieve intuitional fine/coarse 3-D movement control and manipulation.
Comfortable wrist design with a soft silicone mat.
9° tilt angle is ergonomic design to reduce fatigue.

Models and Configurations

Model	IMS-320D	IMS-320U
Joystick type	Inverted	Upright
Control method	Dual-model of speed/position,one joystick for movement control inX-Y-Z axis
Dimensions (W×H×D)	202mm×270mm×225mm	200mm×275mm×130mm
Step size (computationalresolution)	<20nm
Maximum speed	0~10,000μm/s
Travelling distance	20mm
Direction of rotation	15°-45°
