Human ART Equipments
Human ART Equipments IVF Workstation
B Series
Human ART Equipments

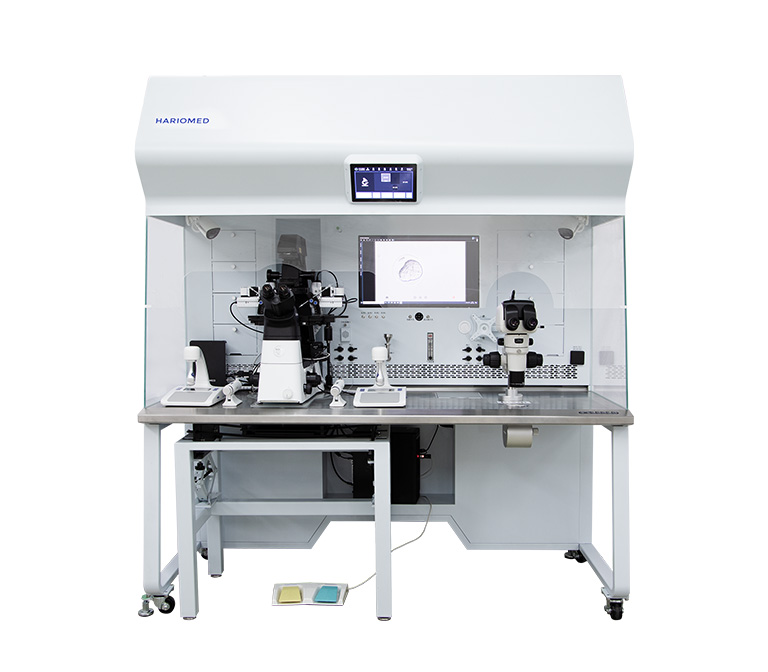

A state-of-art design, provides an optimal environment for operations on oocytes, sperm and embryos during the ART procedure, including extremely clean working area, precise temperature control and double-ensured anti-vibration system.
  • Overview
  • Specification
FEATURES & BENEFITS:
  • Ensure The Safety Of Your Operating Environment
    Ensure The Safety Of Your Operating Environment

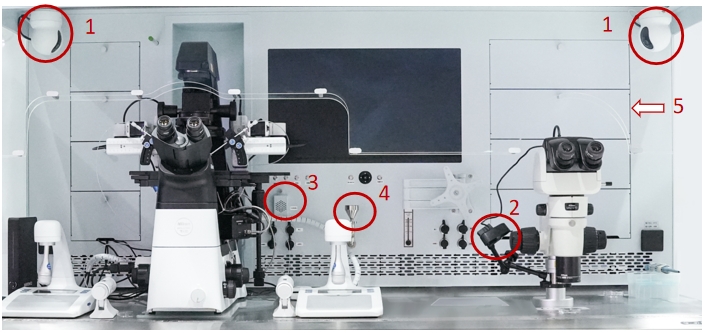

    B series is equipped with integrated monitoring probes that can record environmental parameters in real time during operation.

    1.Surveillance camera
    2.Surveillance camera for stereomicroscope
    3.TVOC detector
    4.PM0.5 detector
    5.Additional storage space
  • Stable & Uniform VerticalLaminar Flow
    Stable & Uniform VerticalLaminar Flow
    Vertical laminar flow & average airflow 0.2~0.5m/s ISO Class 5 clean air achieved through VOC & HEPA filters
  • Excellent Temperature Control
    Excellent Temperature Control
    U-shaped heated surface, temperature accuracy ±0.1℃ and uniformity ±0.2℃ φ90mm ITO heated glass provides excellent temp. accuracy and a large transmission illumination area
  • Anti-vibration Table
    Anti-vibration Table
    Built-in anti vibration table provides an ideal environment for operating microscopes and micromanipulation system
    Improved anti-vibration system (optional) greatly reduces the vibration of buildings, subways, urban railways, etc. to improve unfavorable operating environments
Models and Configurations
Model IW-B1800 IW-B1800D IW-B1800S IW-B1800M IW-B1800L
Workplaces
for microscope
stereo x1(R) stereo x2 inverted x1(L) inverted xl+stereo x1
or stereo xl+inverted x1
none
Heating table(WxD mm) 800x500 800x500(x2) none 800x500 none
Heating glass plate x1 x2 none x1 none
Stereomicroscope
light source
x1 x2 none x1 none
Anti-vibration system none x1 x1 none
Integrated  CO₂ incubator optionalx1 optional x2 optional x1 optional x1 none
23.8-inch monitor x1
10.1-inch
multi-function screen
x1
Integrated RFID
identification module
x1 x2 none x1 none
Storage space optional x2(each can be divided into 4 shelves)
Monitoring cameras optional x2
Monitoring camera
for stereomicroscope
optionalx1 optionalx2 none optional x1 none
TVOC detector optional x1
PM0.5 detector optional x1
Soft film keypad x1 x2 x1 x1 x1
Waterproof socket x2
Computer shelf x1
Mouse and
Keyboard shelf
optional x1
