Capacity & Size

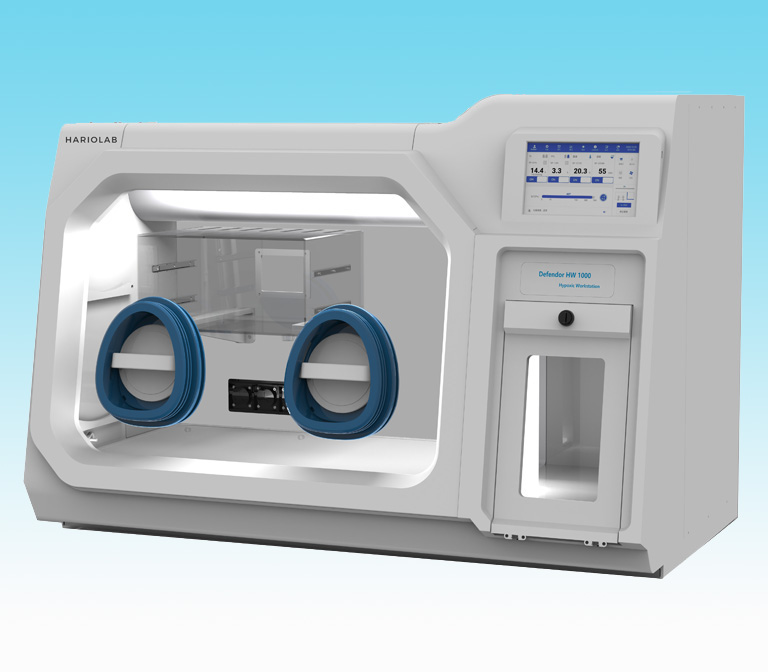

1. External dimensions of the instrument: width 1303 x depth 846 x height 917mm, internal dimensions of the operating compartment: width 938mm× depth 508m× height 591mm,
2. It can easily place 600-900 90mm diameter plates, and can be built into a variety of small equipment;
Structural Part
3. The overall ergonomic design, 10° inclined plane, 20mm thick transparent acrylic front panel, with bare hand operation, wide line of sight, flexible and comfortable operation;
4. The main body of the operation chamber is made of food-grade safe and non-toxic plates, which are actively sealed, which has better air tightness and more convenient use and maintenance;
5. Lift-top front panel with double pneumatic support rods for easy opening and closing, convenient for transferring/transferring equipment or a large number of samples into/out of the operating chamber, or deep cleaning maintenance or overhaul of the equipment;
6. Standard color capacitive touch screen, screen size 10.1 inches, real-time monitoring and recording of culture parameters, easy to operate;
7. The interlocking linkage mechanism of the inner and outer doors of the transfer warehouse ensures that the internal and external doors cannot be opened at the same time to ensure fast and safe transmission;
8. The bare-handed operating system can be controlled by a foot switch or screen for pumping/inflating and other operations;
9. 27L large-capacity transfer bin, inner door size: width 225 * height 321mm, outer door size: width 175 * height 280mm, can transfer 80 petri dishes with a diameter of 90mm at a time, can be set on the screen transfer bin nitrogen purge time (0-999 seconds), vacuum replacement times (0-99 times) and vacuum degree (0-65%) and other parameters;
Control Section
10. One-button parameter control, through the buttons on the touch screen, you can complete the opening and closing of oxygen concentration, carbon dioxide concentration, temperature, humidity, pressure, fan, lighting and other items with one click, and click [one-key stop] on the main interface to turn off all controls;
11. Oxygen control range: 0.1~99.9%, the accuracy is ±0.1% when oxygen is less than 90%, and the accuracy is ±0.2% when oxygen is greater than 90%; It supports the display of percentage and absolute partial pressure of oxygen (mmHg); One-key calibration function of oxygen sensor zero point and standard gas; The oxygen probe regularly reminds the correction function, and the timing days are 1-999 days.
12. Carbon dioxide control range: 0.1%~30%, accuracy ± 0.1%. Can be self-calibrated by the customer;
13. The temperature control range of the operation chamber: ambient temperature +3°C~45°C, accuracy ±0.1°C;
14. The standard semiconductor cold trap humidification device, the controllable humidity in the cavity does not exceed 85%RH, and the operation chamber is equipped with two 10L and one 20L small incubator as standard, the small incubator with hydrophobic membrane, the internal humidity can be as high as 90-95%RH, suitable for mammalian cell culture with high humidity requirements, to prevent dehydration;
15. Positive pressure control system, 0-100Pa micro positive pressure can be set in the cavity to protect the sample from pollution, the main interface graphics display the internal pressure of the cavity, the pressure bar indication range is 0-700Pa, and the negative pressure can be displayed;
Functions and Configurations
16. Intermittent gas control: intermittent control of oxygen and carbon dioxide concentration, independent setting of parameters such as oxygen, carbon dioxide, time and cycle times, the number of gradient segments can be set to 10 segments, the number of cycles can be set to limited cycles (1-999 times) and infinite cycles, the concentration of maintenance sections can be set, and displayed in the form of charts, historical data can be checked, and displayed in the form of curves;
17. With the appointment function, you can make an appointment for oxygen, carbon dioxide, temperature, humidity, lighting, ultraviolet lamp, purification and other categories on/off, the appointment duration can be 0-10080 minutes, and the remaining time of the appointment can be displayed in real time;
18. It is equipped with 3 built-in power sockets as standard, which is convenient for the use of electronic pipettes and long pipettes, and is convenient for built-in small instruments such as handheld centrifuges and small microscopes, which are convenient and safe to use;
19. The standard HEPA 14 filtration system is equipped with ISO Class 3 cleanliness to protect samples from contamination;
20. It is equipped with two ultraviolet lamps as standard, which can disinfect the HEPA and the gas in the operation chamber, and the disinfection time of the ultraviolet lamp can be adjusted independently, up to 10080 minutes;
21. Standard LED lighting, brightness level 5 adjustable;
22. Equipped with a single dish transfer system as standard, suitable for transferring individual dishes/bottles;
23. Third-party cable or probe interface is standard, which can be used for temperature calibration or gas calibration, etc.;
Authority Management, Data Recording and Security Management
24. With three-level authority password login control, device management is safe and efficient;
25. Curve display, you can view the real-time curve and historical curve of parameters such as oxygen concentration, carbon dioxide concentration, temperature, humidity and operation chamber pressure;
26. Data export function, historical data can be queried and exported independently;
27. The log query function allows you to view user operation logs, including operation time, user, and operation content.
28. Historical alarm information query function, storage time 180 days, can query the current alarm and historical alarm information, independently select the target time period, can view the alarm details in the period of time, and can export the alarm information;
29. Display the information of the manufacturer and agent, including telephone, fax, website, address, etc., in case of use questions or failures, you can directly consult through official channels;
30. Chinese operating system, more in line with the operation and use of Chinese users;
31. Safety and alarm function: oxygen concentration, carbon dioxide concentration, temperature, humidity, operation chamber pressure and other overruns will be protected and alarmed, which can be queried in the historical alarm function.
