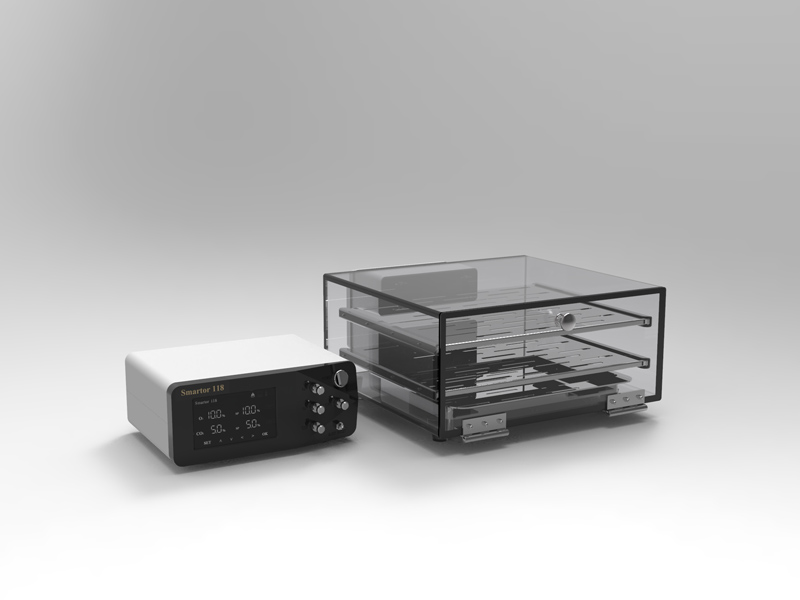

1. The whole system is composed of gas controller, cell culture chamber and sensor module; The cell culture chamber can be put into the user's own carbon dioxide incubator or constant temperature incubator for operation;
2. The system can carry out precise O2 and CO2 control; It is suitable for cell culture under short-term or long-term hypoxia, extreme hypoxia, or hyperoxic conditions;
3. The oxygen concentration control range is 0.1%-99.9%, and the setting and display accuracy is 0.1%; The carbon dioxide concentration control range is 0.1%-20.0%, and the setting and display accuracy is 0.1%;
4. The system has good air tightness, gas saving, can achieve 0.1%-3% extreme hypoxic culture, small fluctuation of opening and closing doors, and fast recovery speed;
5. The controller is equipped with a 5-inch touch screen, which is intuitive to display and easy to operate;
6. The cell culture chamber is equipped with an oxygen probe and a carbon dioxide sensor module to strictly monitor the gas concentration in the culture chamber, and the controller automatically injects oxygen to increase the oxygen concentration or inject nitrogen to reduce the oxygen concentration to the preset value according to the real-time monitoring feedback of the oxygen probe, which can quickly restore and maintain the gas concentration at any time according to the preset value to meet the oxygen setting requirements required for the experiment;
7. Double-layer cell culture chamber is standard, with a size of 36cm long x 30cm wide x 15cm high, and other specifications of culture chamber can also be customized;
8. The cell culture chamber is made of a food-grade transparent organic material shell and stainless steel lamination, which can be completely disassembled for thorough cleaning, and is equipped with 2 shelves and a stainless steel water pan;
9. Equipped with a gas filter to reduce the risk of contamination and suitable for stringent cell culture requirements;
10. The gas controller can be connected to 2 gas cylinders, nitrogen (low oxygen requirement), oxygen (high oxygen requirement), and carbon dioxide cylinder. The gas cylinder is provided by the customer.
11. In addition, it can be equipped with 118pro series host, equipped with computer management software, which can make an appointment for hypoxic incubation time, and can be programmed to carry out intermittent hypoxia, high and low oxygen alternating experiments.
