AMW 1000 is anaerobic and Microaerobic workstation, which can control O2%,CO%, temperature and humidity. Hydrogen control is optional.
AW 1000 is only for Anaerobic workstation, O2% controlled at Zero, which can control CO2%, temperature and humidity. Hydrogen monitoring is optional.
1000 series is popular for most customers, it can contain 600-900 90mm dishes with enough operating space.
Overview
Specification
FEATURES & BENEFITS:

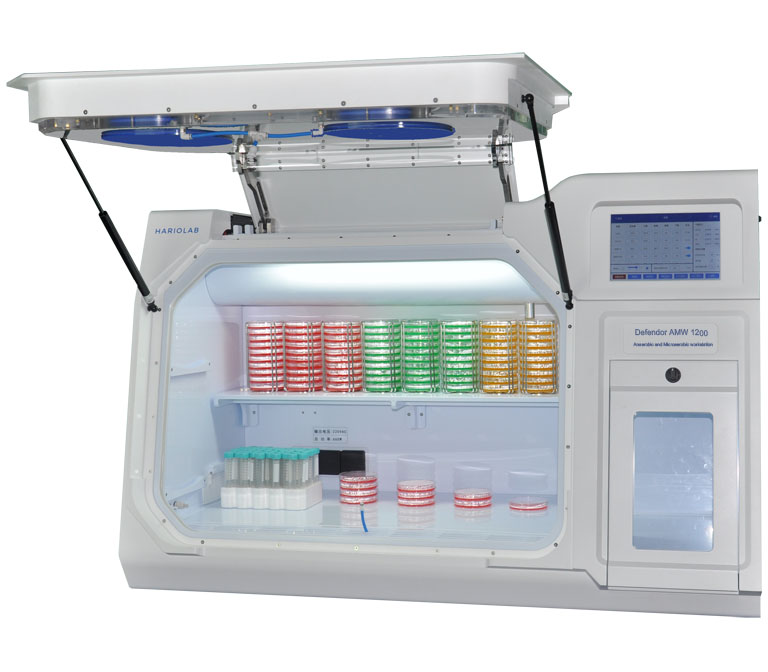

Flip top front panel

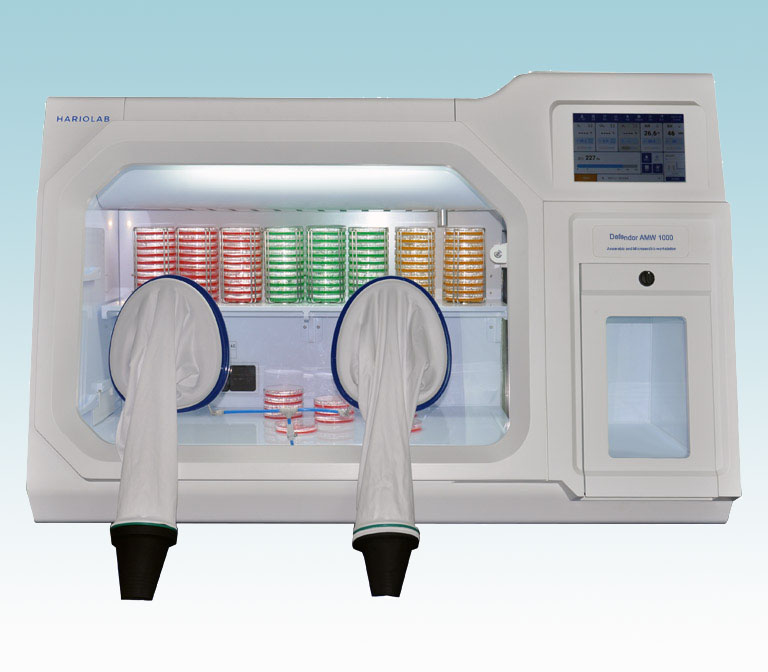

AMW 1000 designed wiht ergonomic ,10°angled front panel with large-view transparent window, optimized for bare-hand operation and enhanced visibility. Special designed Flip top front panelfor easy maintenance and placement of larger instruments. It is very quickly transfer the sample by the airlock or side entry letterbox. The AWM 1000 comes standard with a HEPA H14/H16 system, which filters the internal gas through HEPA to achieve ISO Class 3 cleanlines, protecting the sample and reducing the risk of cross contamination in experiments.

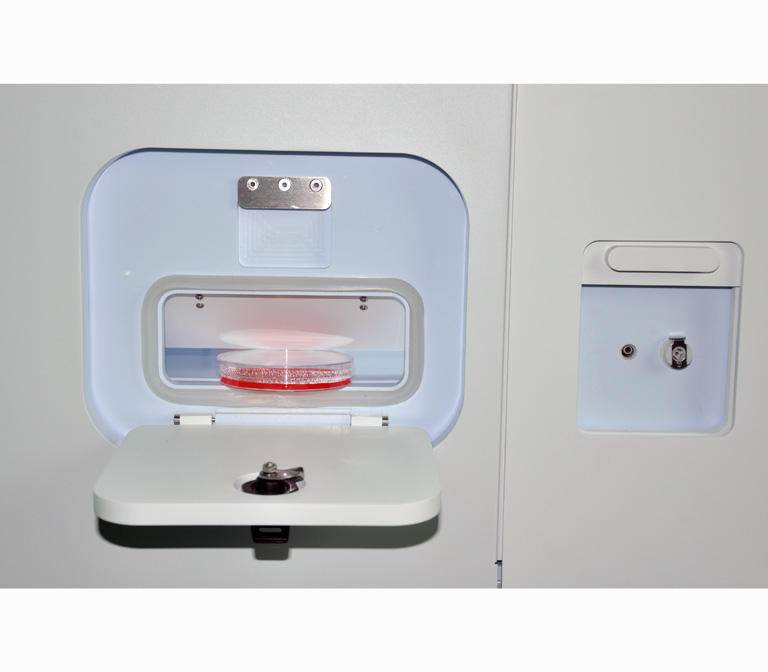

single entry system
Easyly transfer a few dished through single entry system. Allows flexible selection between anaerobic or micro-aerobic modes based on experimental needs. O2 control: 0%-20%. CO2 control: 0.1%-30%. H2 control: 0%-5%(option). Temperature: Ambient +5°C to 45°C . Humidity: Up to 85% RH. Optional H2 concentration monitoring to ensure catalytic deoxygenation efficiency, with over-limit alarm and automatic gas intake valve shut-off.
User-Friendly and smart

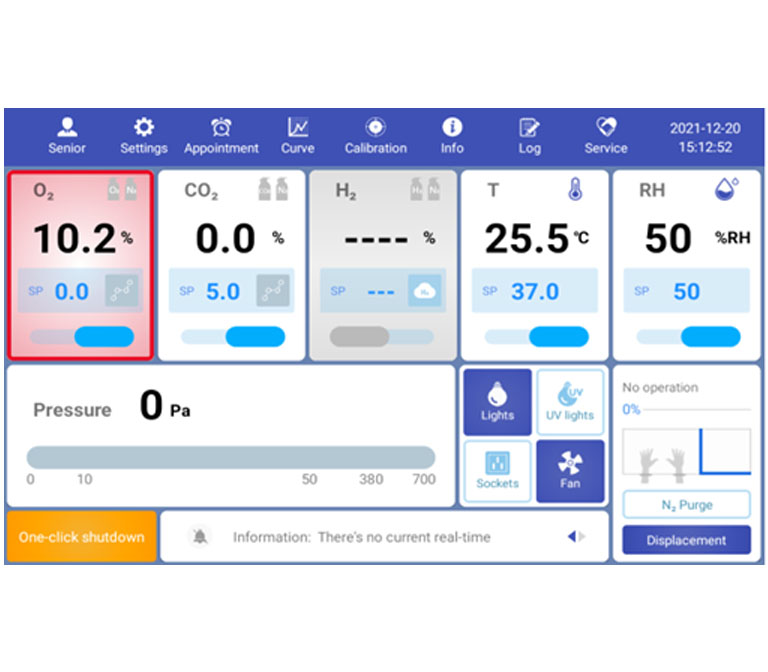

10.1-inch Color Capacitive Touchscreen: Intuitive interface for control and monitoring. One-Touch Start/Stop: Instantly activate/deactivate all systems (anaerobic environment, temperature, humidity, fan, etc.). Tri-Color Anaerobic Status Display: Green (good), Yellow (warning), Red (critical) for real-time condition alerts. Automated Calibration:One-touch oxygen sensor calibration for accuracy assurance.Timed calibration reminders to maintain sensor reliability. Programmable/Cyclic Control: Enables intermittent adjustment of O2 and CO2 concentrations. Users can independently set parameters including O2/CO2 levels, duration, cycle count, and other variables for automated cyclic operation. Out-of-limit alerts for temperature, humidity, and oxygen levels.
High security and goog data Integrity

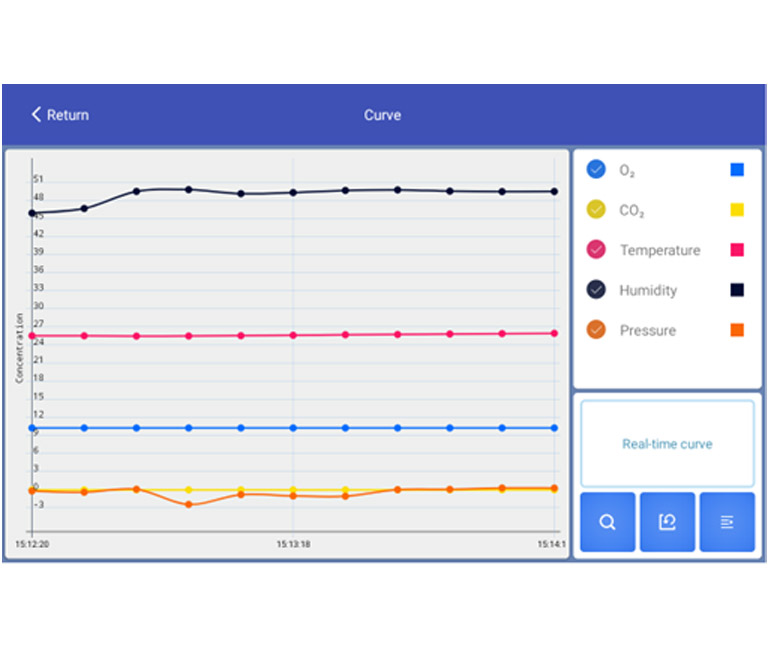

Three-tier password login system: Enforces hierarchical user permissions (admin/operator/guest). Operation logs: Automatically records timestamp, user ID, and actions (e.g., parameter adjustments, mode switches). Real-time & historical monitoring:Displays dynamic curves for O2₂, temperature, humidity, and pressure (supports zoom-in/out). Exports historical parameter curves (CSV/Excel format) and alarm records for compliance or analysis.
