Models and Configurations
AMW 500 parameterr (most parameter is same for AW 500)
- 10mm acrylic shell, which is safe and reliable;

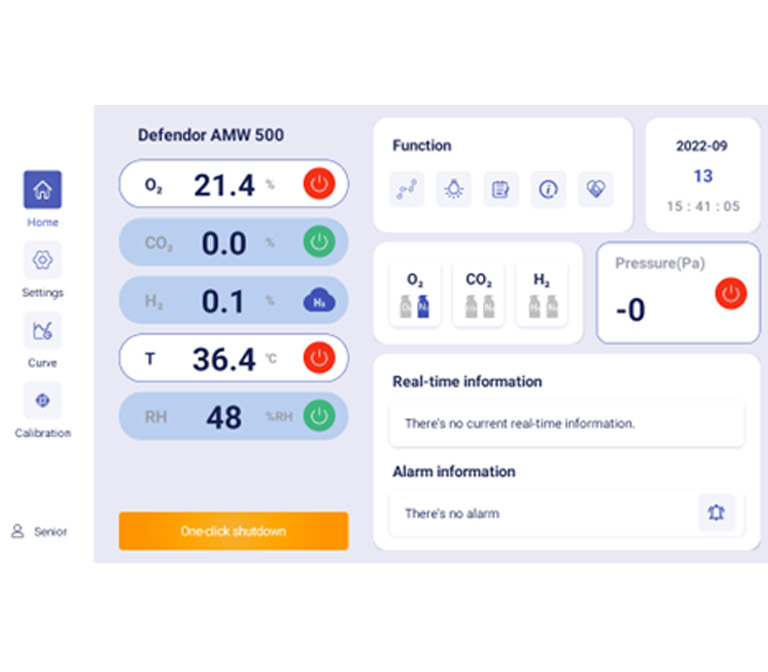

- 7 inches touch screen;
- culture area: 700mm×549m×500mm, the volume of the inner cavity is 269L, the effective volume of the inner cavity is 192L, and 400 90mm plates can be placed;
- Oxygen control range: 0~99.9%, accuracy ±0.1%@≤90%;
- CO2 control range: 0.1%~20%, accuracy ±0.1%@5%;
- Hydrogen option, control range: 0.1%~5%, accuracy ±0.1%;
- Temperature control range: ambient temperature +5°C~45°C, accuracy ± 0.1°C;
- Humidity control range: ambient humidity ~85%RH;
- Inner positive pressure control system;
- Intermittent gas control: intermittent control of oxygen and carbon dioxide concentration, independent setting of parameters such as oxygen, carbon dioxide, time and cycle times, the number of gradient sections can be set to 10 stages, the number of cycles can be set to limited circulation (1~999 times) and infinite cycles, and the concentration of maintenance section can be set;
- Standard oxygen sensor, three-color display of anaerobic status;
- Optional hydrogen sensor, hydrogen concentration protection in anaerobic process to protect the safety of the experiment;

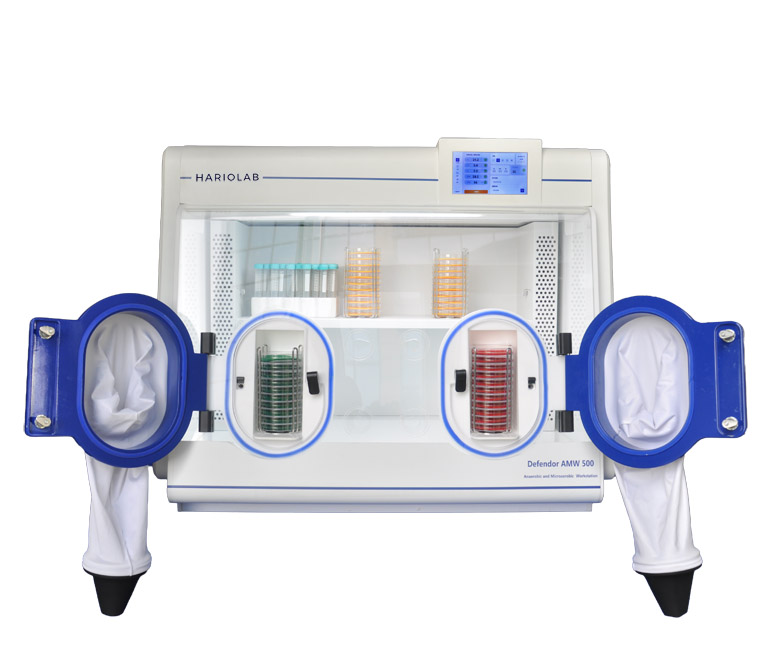

- Multi-functional porthole transfer system, divided into outer door and inner door, for experimental operation and sample transfer, 20 plates can be transferred at a time, two operation ports with gas switches, a single operation port can be operated;
- bare hand sleeve operating system, built-in vacuum pump, and can be pumped/inflated through a foot switch or setting interface;
- The overall ergonomic design, 10° inclined plane, large window transparent panel with bare hands, wide line of sight, flexible and comfortable operation;
- The side panel of the whole machine can be detached, which is convenient for deep cleaning of the equipment or equipment entry and exit;
- LED lighting is standard, and the brightness can be set at 5 levels, which can be adjusted independently according to needs;
